HVAC Machinery

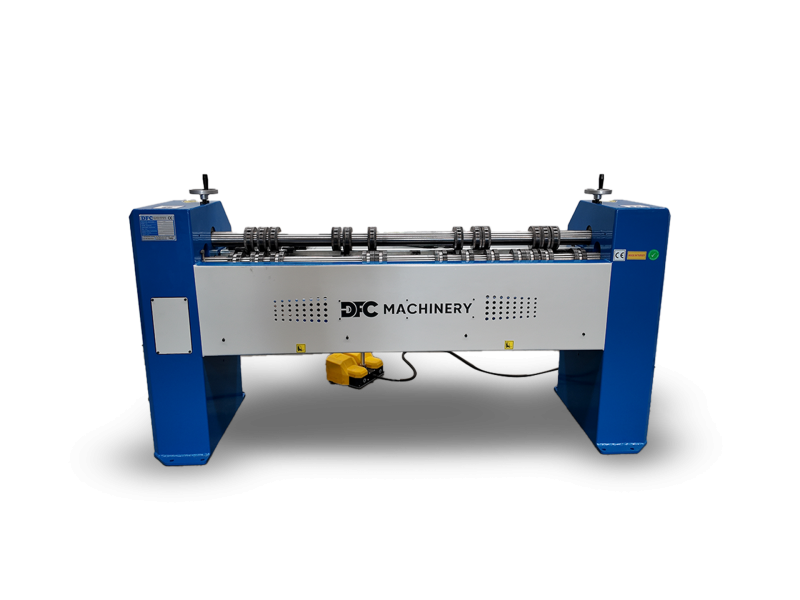

Rounding Machine
The Rounding machine is a highly practical tool designed for rounding the inner and outer edges of duct elbows.
Its sliding rollers enable smooth and precise shaping by closing the existing seam lines on pre-stitched parts during the rolling process. This ensures a clean, uniform finish while improving structural integrity and aesthetic quality.
The Rolling Machine has been exported to a total of 17 countries, including Qatar, Kazakhstan, Georgia, Italy, France, Algeria, Romania, and Azerbaijan.
Technical Specifications
Technical Specifications
Technical specifications and production capacity of the Fitting Rounding Machine.
| TECHNICAL INFORMATION | VALUE |
|---|---|
| ENGINE | MR SERIAL 0,75 KW |
| SHEET WIDTH | 1500mm |
| SPEED | 15m/min |
| ANGLE MOTOR | 0,37Kw |
| LUBRICATION | MANUAL |
| MIN - MAX SHEET THICKNESS | 0,5-1,2mm |
| LOCK TYPE | Snaplock - Pittsburgh |
| WEIGHT | 500Kg |
| MIN RADIUS | 200mm |
| CONTROL TYPE | Foot Pedal |
| CURRENT | 18A |
Product & Stock Code
| STOCK NAME | STOCK CODE |
|---|---|
| Fitting Rounding Machine | DFC BPYM 0001 |
Frequently Asked Questions
What sheet thicknesses can the Fitting Rounding Machine process? +
The Fitting Rounding Machine can process sheet thicknesses between 0,5 - 1,2 mm.
What is the maximum sheet width of the Fitting Rounding Machine? +
The Fitting Rounding Machine can process sheets with a maximum width of 1500 mm.
What is the operating speed of the Fitting Rounding Machine? +
The operating speed of the Fitting Rounding Machine is 15 m/min.
Which lock types can the Fitting Rounding Machine process? +
The Fitting Rounding Machine can process Snaplock and Pittsburgh lock types.
Warranty and Technical Support
Our after-sales service standards and warranty conditions.
2-Year Warranty
The Fitting Rounding Machine is covered by a 2-year mechanical and 2-year electronic warranty.
Fast Technical Service
Technical service is provided in Türkiye and abroad within 1–3 business days.
10-Year Spare Parts Guarantee
There is a 10-year spare parts supply guarantee. Depending on stock availability, same-day shipment may be provided.
- 01.
Remote Access and Automation SupportThrough our internet-based automation system, machines can be accessed remotely to identify problems and provide immediate PLC and automation support.
- 02.
Installation and Training ServicesInstallation, commissioning and operator training are included in the delivery.
- 03.
Warranty and On-Site Service CoverageDuring the warranty period, machine-related failures are covered not only for parts but also for the required service; when necessary, travel and accommodation expenses are covered by DFC Makine.
