Máquina de Brida TDC

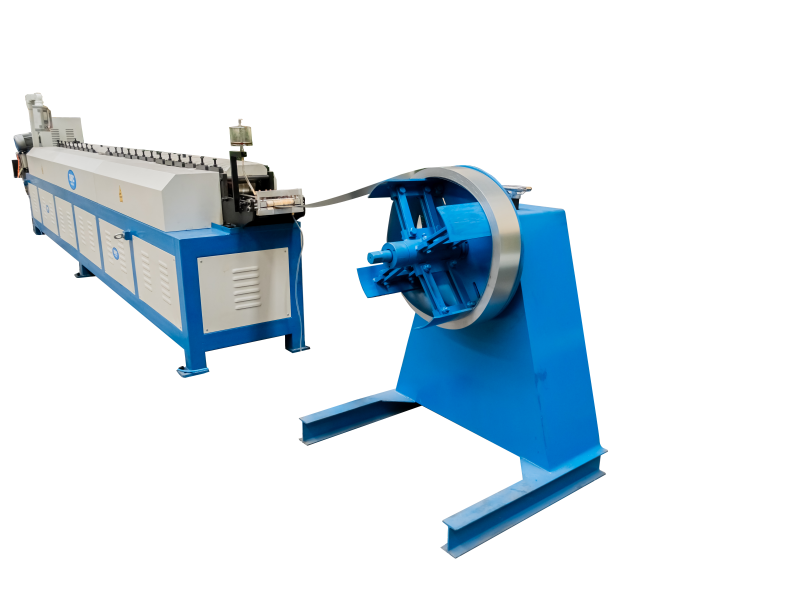

La máquina formadora de brida TDC representa una solución de última generación para la fabricación de bridas de conductos rectangulares. Permite una producción estandarizada, automatizada y de alto volumen, mejorando significativamente la eficiencia y consistencia en la fabricación de conductos cuadrados.
Los productos de la serie TDC se pueden integrar con nuestras otras máquinas, como máquinas de corte, máquinas dobladoras, máquinas plegadoras, máquinas de bloqueo de Pittsburgh, máquinas de hierro angular y máquinas de alimentación, para formar una línea de producción de conductos de aire completa. Los conductos de aire producidos cumplen con los estándares de la industria y son altamente confiables.
- Sistema de control automatizado con pantalla táctil PLC
- Sistema de corte final
- Sistema automático de aplicación de silicona
- Material de formado de rodillos, molde de doblado y cuchilla de corte: acero 4140.
La Máquina de Bridas TDC se ha exportado a un total de 18 países, incluidos Kazajistán, Kosovo, Italia, Alemania, Argelia, Georgia y Rumanía.
Especificaciones Técnicas
Technical Specifications
Technical specifications and production capacity of the TDC Flange Machine.
| TECHNICAL INFORMATION | VALUE |
|---|---|
| FLANGE SIZE | 20-25-30-35-40 mm |
| SHEET THICKNESS | 0.5-0.8 mm |
| CONTROL SYSTEM | PLC |
| TOTAL MOTOR POWER | 5.5 kW |
| REQUIRED AIR PRESSURE | 5 - 8 Bar |
| PRODUCT LENGTH | 250 mm-6000 mm |
| ROLL CARRYING CAPACITY | 500 kg |
| WORKING SPEED | 10 m/min |
Model and Dimension Table
Models and dimension values listed for the TDC Flange Machine.
| MODEL | ROLLER SHAPE | STRIP WIDTH (mm) | THICKNESS (mm) | POWER (kW) | WEIGHT (kg) | MACHINE SIZE (mm) |
|---|---|---|---|---|---|---|
| TDC-20A |  |
89 | 0.5 - 0.6 | 5.5 | 2400 | 4900 x 800 x 1400 |
| TDC-25A | 99 | 0.5 - 0.8 | 5.5 | 2500 | 4900 x 800 x 1400 | |
| TDC-30A | 121 | 0.5 - 1.0 | 5.5 | 2500 | 4900 x 800 x 1400 | |
| TDC-35A | 131 | 0.5 - 1.0 | 5.5 | 3000 | 4900 x 800 x 1400 | |
| TDC-40A | 146 | 0.5 - 1.2 | 5.5 | 3000 | 4900 x 800 x 1400 |
Product & Stock Code
| STOCK NAME | STOCK CODE |
|---|---|
| TDC 20 Flange Machine | 153-L TDC 0003 |
| TDC 25 Flange Machine | 153-L TDC 0002 |
| TDC 30 Flange Machine | 153-L TDC 0004 |
| TDC 35 Flange Machine | 153-L TDC 0005 |
| TDC 40 Silicone System | 153-L TDC 0006 |
Frequently Asked Questions
What is the flange size of the TDC Flange Machine?+
The FLANGE SIZE of the TDC Flange Machine is 20-25-30-35-40 mm.
What sheet thickness can the TDC Flange Machine process?+
The SHEET THICKNESS range is 0.5-0.8 mm.
What control system does the TDC Flange Machine use?+
The TDC Flange Machine uses a PLC control system.
How many models are available for the TDC Flange Machine?+
The TDC Flange Machine is listed on the website with 5 model/dimension rows. Details are provided in the table above.
Warranty & Technical Support
Our after-sales service standards and warranty terms.
2-Year Warranty
The TDC Flange Machine is covered by a 2-year mechanical and 2-year electronic warranty.
Fast Technical Service
Technical service is provided in Türkiye and abroad within 1–3 business days.
10-Year Spare Parts Supply
10-year spare parts supply guarantee is provided. Same-day dispatch may be available depending on stock.
- 01.
Remote Access and Automation SupportOur internet-based automation system allows remote access to machines for fault detection and immediate PLC and automation support.
- 02.
Installation and Training ServicesInstallation, commissioning and operator training are included in the delivery.
- 03.
Warranty and On-Site Service CoverageDuring the warranty period, machine-related failures are covered not only for parts but also for the required service. When necessary, travel and accommodation expenses are covered by DFC Makine.
